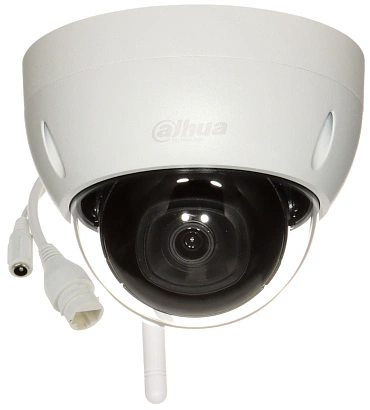

Cameră de supraveghere IP Dome 4 MP DAHUA IPC-HDBW1430DE-SW-0280B, 2.8 mm, IR 30 m, White | dabstore.ro

Se încarcă…

Cameră de supraveghere IP Dome 4 MP DAHUA IPC-HDBW1430DE-SW-0280B, 2.8 mm, IR 30 m, White | dabstore.ro

Cameră

Senzor de imagine

1/3 inch CMOS

Rezoluție max.

2560 (H) × 1440 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Iluminare minimă

0.03 Lux@F2.0 (Color, 30 IRE) 0.003 Lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (IR LED)

Illuminator On/Off Control

Auto; Manual

Număr iluminatoare

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0–355° Tilt: 0–75° Rotation: 0–355°

Zi & noapte

Auto (ICR)/Color/B/W

Obiectiv

Tipul lentilei

Fixed-focal

Montură obiectiv

M12

Distanța focală

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Câmp vizual

2.8 mm: Horizontal: 90°; Vertical: 50°; Diagonal: 107° 3.6 mm: Horizontal: 76°; Vertical: 40°; Diagonal: 92°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.0 m 3.6 mm: 1.4 m

Distanță DORI

Lens Detect Observe Recognize Identify

2.8 mm

68 m 27.2 m 13.6 m 6.8 m

3.6 mm

85.2 m 34.1 m 17.0 m 8.5 m

Video

Compresie video

H.264B; H.264; H.264H; H.265

Smart Codec

Smart H.265+;Smart H.264+

Video Frame Rate

Main stream: 2560 × 1440@ (1–20 fps) Sub stream: 640 × 480@(1–25 fps) 640 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Rezoluție

2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720)

Control rată de biți

CBR/VBR

Rată biți video

H264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps

BLC

WDR

DWDR

Echilibru alb

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Reducere zgomot

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Regiune de interes (ROI)

Yes (4 areas)

Smart Illumination

Image Rotation

0°/180°

Oglindire

Alarmă

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering

Network

Network Port

RJ-45 (10/100 Base-T)

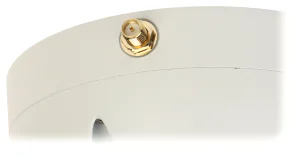

Wi-Fi

IEEE802.11b/g/n 2.4–2.4835 GHz

Rază de acțiune wireless

Up to 80 m (The performance varies based on actual environment)

SDK and API

Cyber Security

Video encrypton; confguraton encrypton; Digest; WSSE; account lockout; security logs; generaton and importng of X.509 certfcaton; HTTPS; trusted boot; trusted executon; trusted upgrade

Network Protocol

IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;RTMP

Interoperabilitate

ONVIF (Profile S/Profile G); CGI; P2P

Stocare

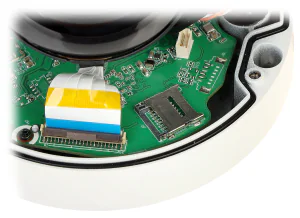

Micro SD card (support max. 256 GB, sold separately)

Browser

IE Chrome Firefox

Software de management

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Rețea

Utilizator/Gazdă

6 (Total bandwidth: 36 M)

Certificare

Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C

Putere

Sursă de alimentare

12 VDC

Putere consumată

Basic: 2 W (12 VDC); Max. (H.265+IR intensity): 4.9 W (12 VDC)

Environment

Temperatură de funcționare

–40 °C to +60 °C

Umiditate de operare

≤95%

Temperatură de depozitare

–30 °C to +60 °C

Aprobare

Protecție

IP67; IK10

Structură

Casing

Metal

Dimensiuni produs

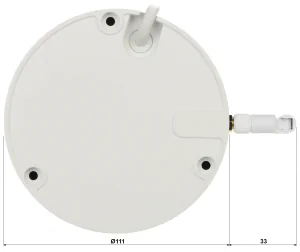

Φ110.7 mm × 88.7 mm / Φ4.33 inch × 3.49 inch

Greutate netă

414 g

Greutate brută

592 g
