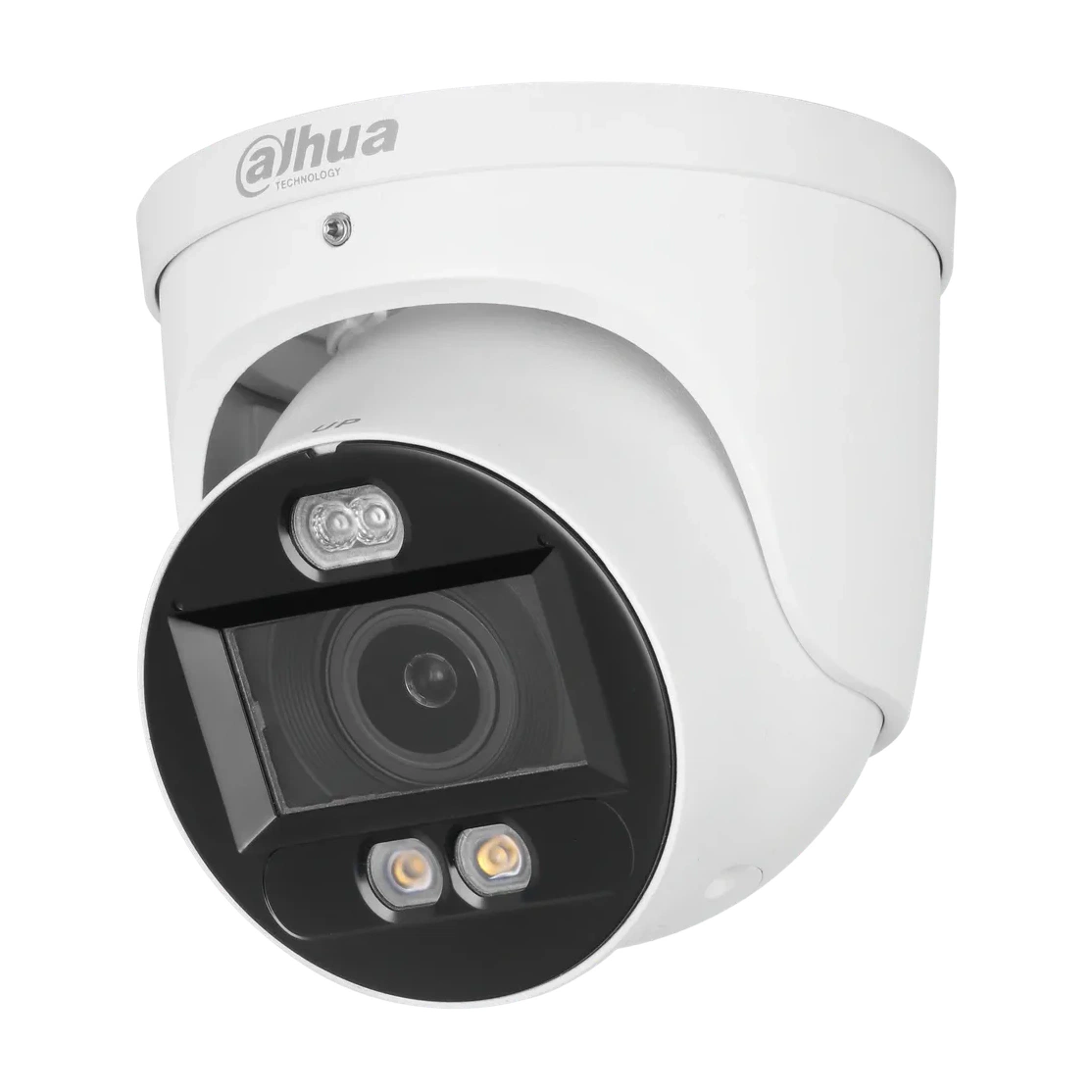

Cameră IP turret DAHUA IPC-HDW3549H-ZAS-PV-27135-S5, 5 Mpx, obiectiv 2,7-13,5 mm | dabstore.ro

Cameră

Senzor de imagine

1/2.7 inch CMOS

Rezoluție maximă

2960 (H) × 1668 (V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 lux@F1.0 (Color, 30 IRE) 0.0003 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on)

S/N Ratio

﹥ 56 dB

Illumination Distance

Up to 50 m (IR) Up to 40 m (warm light)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2 (IR LED) 2 (warm light)

Ajustare unghi

Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°

Caracteristici

ROM

128 MB

RAM

512 MB

Obiectiv

Tip lentilă

Motorized vari-focal

Mount Type

φ16

Distanță focală

2.7 mm–13.5 mm

Field of View

H: 113°–36° V: 57°–20° D: 137°–40°

Iris Type

Fixed

Close Focus Distance

1.5 m

Distanță DORI

Lens Detect Observe Recognize Identify

W

65.2 m 26.1 m 13.0 m 6.5 m

T

186.6 m 74.6 m 37.3 m 18.7 m

Funcții inteligente

IVS (Perimeter Protection)

Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Intelligent

SMD 4.0

Less false alarm, longer detection distance

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Rezoluție

5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M 2304×1296/2048 × 1536); 1080p (1920×1080); 1.3M (1280 × 960); 720P(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF (352×288/352×240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–16384 kbps H.265: 32 kbps–16384 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

HLC

WDR

120 dB

Scene Self-adaptation

Echilibru alb

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Reducere zgomot

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Defog

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Oglindire

Mască confidenţialitate

4 areas

Audio

Built-in MIC

Yes, built-in dual Mic

Built-in speaker

Yes, built-in speaker

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarmă

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; security exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperabilitate

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 72 M)

Stocare

FTP; SFTP; Micro SD card (Support max. 256 G); NAS

Browser

IE: IE8/9/11 Chrome Firefox

Software de management

SmartPSS Lite; DSS; DMSS

Mobile Phone

iOS; Android

Certificări

Certificare

CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

1 channel (RCA port)

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3 V–5 VDC

Ieșire alarmă

1 channel out: wet contact, 300 mA 12 VDC

Putere

Sursă de alimentare

12 VDC/PoE (802.3af)

Putere consumată

Basic: 4 W (12 VDC); 5 W (PoE) Max. (pulling stream+warning light+speaker+warm light on): 8.5 W (DC12 V) 10.6 W (POE)

Environment

Condiții de funcționare

–30 °C to +60 °C

Umiditate de operare

≤95%

Temperatură de depozitare

–40 °C to +60 °C

Umiditate depozitare

≤95%

Protection Grade

IP67

Structură

Casing

Metal

Dimensiuni

127.6 mm × Φ122.0 mm / 5.02 inch × Φ4.80 inch

Greutate netă

885 g

Greutate brută

1060 g
