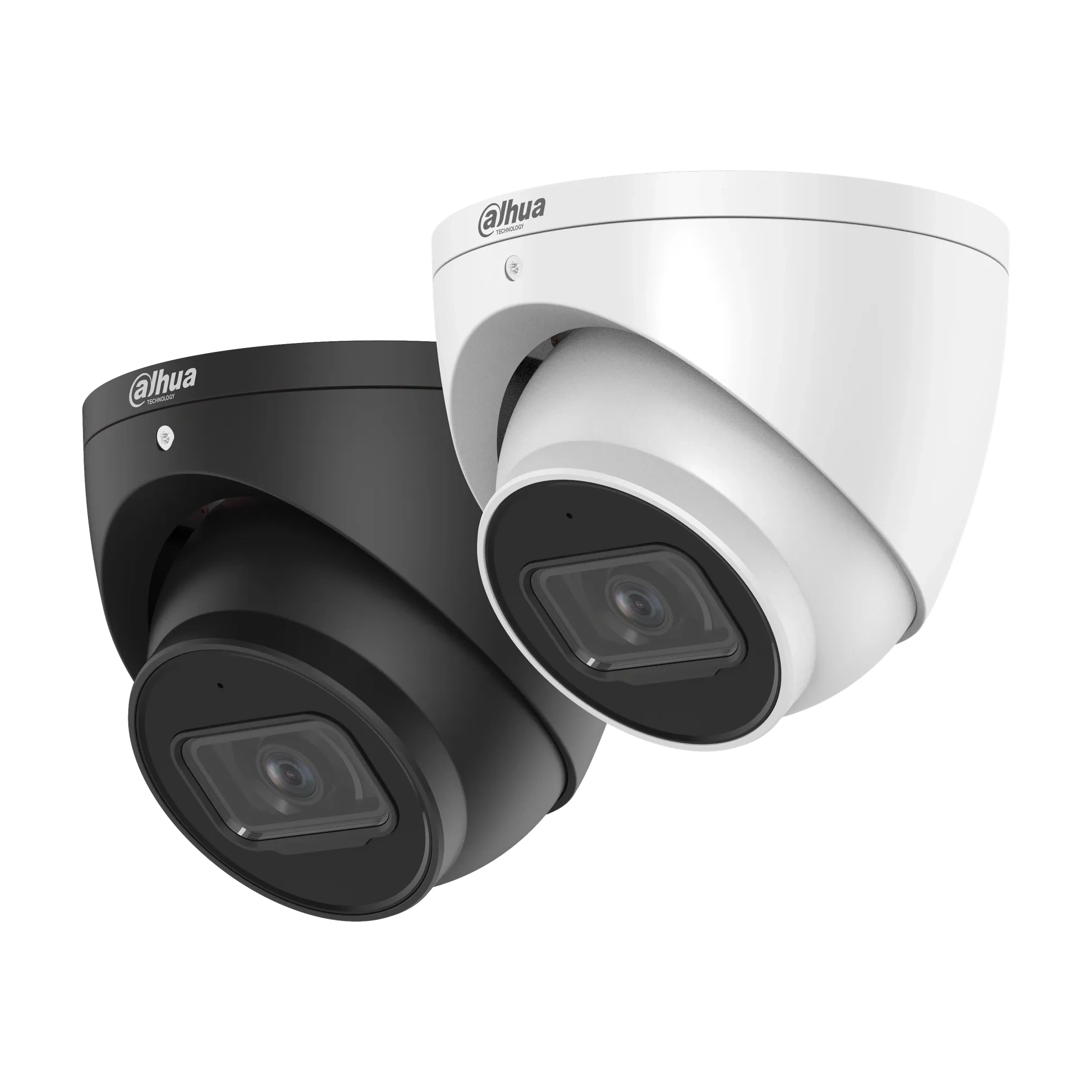

Cameră IP turret DAHUA IPC-HDW5442TM-ASE-0280B-S3, 4 Mpx, obiectiv 2,8 mm | dabstore.ro

Se încarcă…

Cameră IP turret DAHUA IPC-HDW5442TM-ASE-0280B-S3, 4 Mpx, obiectiv 2,8 mm | dabstore.ro

Cameră

Senzor de imagine

1/1.8 inch CMOS

Rezoluție maximă

2688 (H) × 1520 (V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 lux@F1.6 (Color, 30 IRE) 0.0002 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

50 m (IR)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°

Caracteristici

ROM

128 MB

RAM

512 MB

Obiectiv

Tip lentilă

Fixed-focal

Montura obiectiv

M12

Distanță focală

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: Horizontal: 113°; Vertical: 60°; Diagonal: 134° 3.6 mm: Horizontal: 89°; Vertical: 48°; Diagonal: 104° 6 mm: Horizontal: 56°; Vertical: 31°; Diagonal: 65°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.3 m 3.6 mm: 1.9 m 6 mm: 3.8 m

Distanță DORI

Lens Detect Observe Recognize Identify

2.8mm

57.9 m 23.2 m 11.6 m 5.8 m

3.6mm

71.7 m 28.7 m 14.3 m 7.2 m

6mm

113.1 m 45.2 m 22.6 m 11.3 m

Smart Event

IVS

Abandoned object; missing object

Funcții inteligente

Heat Map

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Detectare față

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face snapshot set as face, one-inch photo or custom; 3 snapshot strategies (real-time snapshot, optimization snapshot and quality first); face angle filter; optimization time setting

Numărare persoane

Tripwire people counting, generating and exporting report (day/month); people counting in area; queue management; 4 rules can be set for tripwire, people counting in area and queue management.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Professional, intelligent

SMD 3.0

Less false alarm, longer detection distance

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Rezoluție

2688 × 1520; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

HLC

WDR

140 dB

Scene Self-adaptation (SSA)

Echilibru alb

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Reducere zgomot

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Defog

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 4M resolution and lower)

Oglindire

Mască confidenţialitate

8 areas

Audio

Built-in MIC

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarmă

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; SMD; people counting in area; stay detection; people counting; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP

Interoperabilitate

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P

User/Host

20 (Total bandwidth: 80 M)

Stocare

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE: IE 8 and later Chrome Firefox

Software de management

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certificare

Certifications

CE-LVD: EN60950-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Putere

Sursă de alimentare

12 VDC/PoE (802.3af)/ePoE

Putere consumată

Basic: 2.1 W (12 VDC); 2.6 W (PoE) Max. (H.265 + three streams + intelligence on + IR on): 6.2 W (12 VDC); 7.2 W (PoE)

Environment

Temperatură de funcționare

–40 °C to +60 °C

Umiditate de operare

≤95%

Temperatură de depozitare

–40 °C to +60 °C

Protecție

IP67

Structură

Casing

Metal

Dimensiuni produs

Φ106 mm × 93.6 mm / Φ4.17 inch × 3.69 inch

Greutate netă

545 g

Greutate brută

710 g
