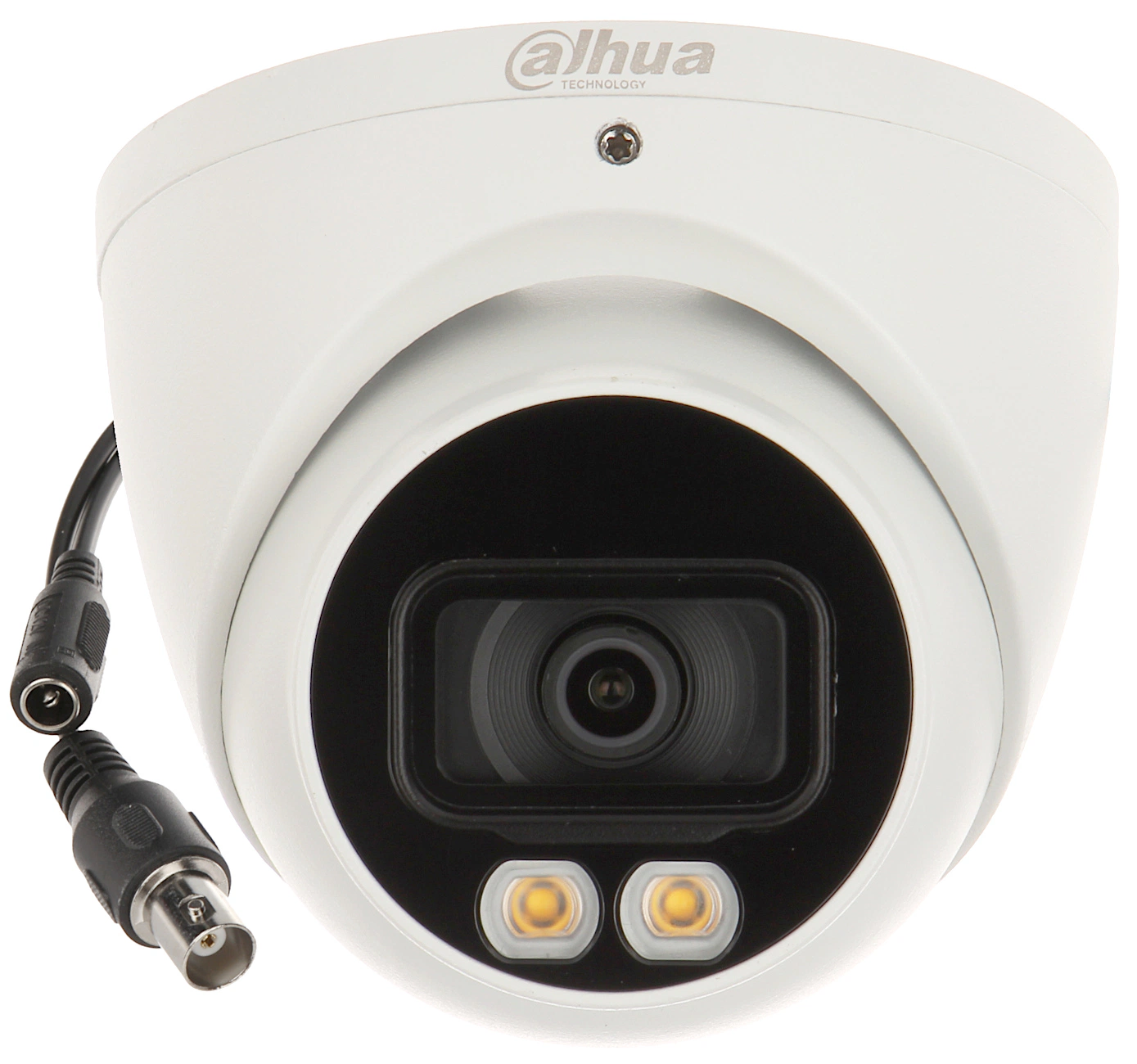

Cameră turret AHD, HD-CVI, HD-TVI, CVBS DAHUA HAC-HDW1809T-A-LED-0280B, Full-Color, 8,3 Mpx, 2,8 mm | dabstore.ro

Cameră

Pixel

8 MP

Senzor de imagine

8MP CMOS

Rezoluție maximă

3840 (H) × 2160 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100000 s NTSC: 1/4 s–1/100000 s

Min. Illumination

0.001 lux@F1.0 (Color) 0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

40 m

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°

Obiectiv

Tip lentilă

Fixed-focal

Montura obiectiv

M12

Distanță focală

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 106°; V: 55°; D: 125° 3.6 mm: H: 85°; V: 45°; D: 100°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 3.5 m 3.6 mm: 4.5 m

Distanță DORI

Lens Detect Observe Recognize Identify

2.8 mm

91.0 m 36.4 m 18.2 m 9.1 m

3.6 mm

107.6 m 43.0 m 21.5 m 10.8 m

Video

Video Frame Rate

CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps; TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps; CVBS: PAL: 960H; NTSC: 960H

Rezoluție

4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960 H (960 × 576/960 × 480)

Day/Night

Color

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

Echilibru alb

Auto; Area white balance

Gain Control

Auto

Reducere zgomot

3D NR

Illumination Mode

Smart Light

Defog

Electronic defog

Zoom digital

4×

Oglindire

Mască confidenţialitate

Off/On (8 areas, rectangle)

Certificare

Certifications

CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

One channel built-in MIC

Putere

Sursă de alimentare

12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Putere consumată

Max 6.9 W (12 VDC, LED on)

Environment

Temperatură de funcționare

–40 °C to +60 °C

Temperatură de depozitare

–40 °C to +60 °C

Protecție

IP67

Structură

Material carcasă

Metal

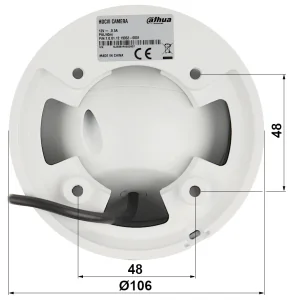

Dimensiuni produs

φ106.0 mm × 93.6 mm / φ4.17 inch × 3.69 inch

Greutate netă

0.5 kg

Greutate brută

0.67 kg

General

Dimensiuni ambalaj

148 mm × 139 mm × 137 mm / 5.83 inch × 5.47 inch × 5.39 inch

Installation

Wall mount; ceiling mount; vertical pole mount
