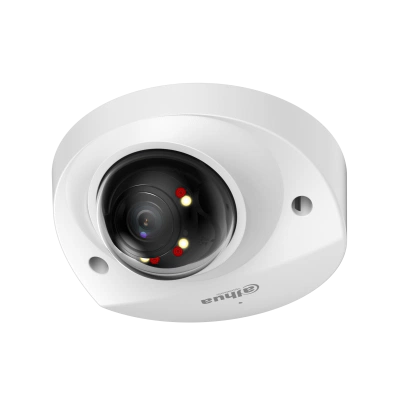

Camerade supraveghere IP dome WizSense 2 MP, lentila fixa si iluminare duala inteligenta Smart Dual Light IPC-HDBW2249F-AS-IL-0280B | dabstore.ro

Se încarcă…

Camerade supraveghere IP dome WizSense 2 MP, lentila fixa si iluminare duala inteligenta Smart Dual Light IPC-HDBW2249F-AS-IL-0280B | dabstore.ro

Cameră

Senzor de imagine

1/2.8 inch CMOS

Rezoluție maximă

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Sistem de scanare

Progressive

Viteză obturator electronic

Auto/Manual 1/3 s–1/100,000 s

Iluminare minimă

0.002 lux@F1.6 (Color, 30 IRE); 0.0002 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)

S/N Ratio

＞56 dB

Distanță de iluminare

Up to 30 m (IR) Up to 30 m (Warm light)

Control pornire/oprire iluminator

Auto;Manual

Număr de iluminatoare

4 (Multi-core (IR + warm) light)

Ajustare unghi

Pan: -30° până la 30°; Tilt: 0° până la 80°; Rotation: 0° până la 360°

Obiectiv

Tip lentilă

Fixed-focal

Montura obiectiv

M12

Distanță focală

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 105°; V: 56°; D: 126° 3.6 mm: H: 87°; V: 44°; D: 105°

Iris Control

Fixed

Distanță minimă de focalizare

2.8 mm: 0.7 m 3.6 mm: 1.3 m

Distanță DORI

Lens {v2}--> Detect {v2}--> Observe {v2}--> Recognize {v2}--> Identify {v2}-->

2.8 mm {v2}-->

43.9 m {v2}--> 17.5 m {v2}--> 8.8 m {v2}--> 4.4 m {v2}-->

3.6 mm {v2}-->

58.9 m {v2}--> 23.6 m {v2}--> 11.8 m {v2}--> 5.9 m {v2}-->

Funcții inteligente

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD Plus

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 1920 × 1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Rezoluție

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

HLC

WDR

120 dB

Echilibru alb

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Reducere zgomot

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Smart Dual Light

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Oglindire

Mască confidenţialitate

4 areas

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; G.726; PCM

Alarmă

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; external alarm

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperabilitate

ONVIF (Profile S & Profile G & Profile T); CGI

Utilizator/gazdă

6 (Total bandwidth: 36 M)

Stocare

FTP; SFTP; Micro SD card (support max. 256 GB)

Browser

IE; Chrome;Firefox

Software de management

Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Cyber Security

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

Certificare

Certificări

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Intrare audio

1 channel (RCA port)

Ieșire audio

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Putere

Alimentare

12 VDC/PoE (802.3af)

Consum de putere

Basic: 1.9 W (12 VDC), 2.3 W (PoE); Max.: 6.4 W (12 VDC), 7.7 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)

Environment

Temperatură de funcționare

–40 °C to +60 °C

Umiditate de funcționare

≤95%

Temperatură de depozitare

–40 °C to +60 °C

Umiditate de depozitare

≤95%

Protecție

IP67; IK10

Structură

Material carcasă

Metal

Dimensiuni produs

55.0 mm × Φ108.9 mm / 2.17 inch × Φ4.29 inch

Greutate netă

0.41 kg

Greutate brută

0.55 kg
