Măsurarea rezistenței
600 Ω ± (1% + 2) @ 0.1 Ω
6 kΩ ± (0.8% + 2) @ 0.001 kΩ
60 kΩ ± (0.8% + 2) @ 0.01 kΩ
600 kΩ ± (0.8% + 2) @ 0.1 kΩ
6 MΩ ± (1.2% + 3) @ 0.001 MΩ
60 MΩ ± (2.5% + 5) @ 0.01 MΩ
Măsurarea capacității
6 nF ± (3% + 10) @ 1 pF
60 nF ... 600 µF ± (3% + 5) @ 10 pF ... 100 nF
6 mF ... 60 mF ± 10% @ 1 µF ... 10 µF
Măsurarea factorului de umplere al semnalului dreptunghiular
0.1 % ... 99.9 % ± (2% + 5) @ 0.1 %
Caracteristici principale
True RMS - accurate measurement of the RMS current and voltage for any waveform
Possibility to measure AC voltage using low measuring impedance (LoZ mode)
LPF function - allows to measure the AC voltage values using low-pass filter with a frequency limit of 200 Hz
Robust housing that meets the requirements of the IP65 inchIndex of Protection" class
Freezing the last reading
Test and identification of phase sequence for a three-phase motor: 600 V
Writing the value MAX / MIN
REL - relative measurement mode
Writing the value peak
Analog bargraph
Large, double LCD display with backlight
Low battery level alarm
Flashlight built-in
Aesthetic and solid construction

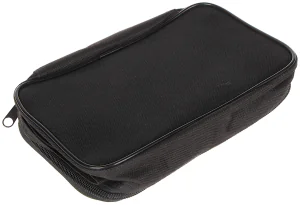

The set includes a practical case
