MPN: RUT956

Router TELTONIKA RUT956, 4G LTE Cat 4, Wi-Fi 4, 4x Ethernet, DIN rail, dual SIM, RS232/RS485, GNSS

Name: Router TELTONIKA RUT956, 4G LTE Cat 4, Wi-Fi 4, 4x Ethernet, DIN rail, dual SIM, RS232/RS485, GNSS
Brand: Teltonika
SKU: RUT956
Price: 1623.66 RON
Availability: InStock

Vezi toate produsele TELTONIKA →

pentru estimare livrare

Discount de până la 10% după conectare pentru B2B & B2G

Garanție tehnică:24 luniGaranție de conformitate:24 luni

Status: În stocDistribuitori: 1Livrat de: dabstore

Distribuitor 01 (RO-23)București, Româniacel mai ieftin
Preț unitar, fără TVA:1.341,87 lei1.2∗∗,∗∗ lei
Total (1 buc): 1.2∗∗,∗∗ lei · TVA (21%): 25∗,∗∗ lei · Total cu TVA: 1.5∗∗,∗∗ lei
Stoc: 13 bucLivrare: 1 ziStoc verificat: 30.08.2026, 14:52

Cantitate

RO-23:~~1.623,66 lei~~1.5∗∗,∗∗ lei cu TVA

Conectează-te pentru a putea comanda

Stoc total disponibil: 13 bucăți, la 1 distribuitor

Produse similare

// RUT956 este un router industrial care combină conectivitate celulară 4G LTE dual-SIM, Wi-Fi și conexiuni prin cablu, oferind în plus și capabilități GNSS.

// Failover-ul WAN automat asigură funcționarea neîntreruptă a soluției chiar și în cazul pierderii conexiunii principale.

// Interfețele de comunicare serială permit integrarea unei game mai variate de dispozitive în ecosistemul soluției, inclusiv echipamente mai vechi.

// Intrările/Ieșirile digitale și analogice, combinate cu funcțiile software avansate RutOS, facilitează controlul echipamentelor, automatizarea și notificările de evenimente.

// Vine echipat cu funcții software industriale avansate, printre care Modbus, SNMP, TR-069, NTRIP, MQTT și multiple VPN-uri.

4G (LTE-FDD): B1, B3, B7, B8, B20, B28A
4G (LTE-TDD): B38, B40, B41
3G: B1, B8
2G: B3, B8

Mobile

Mobile module

4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps

3GPP Release

Release 11

eSIM*

Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

SIM switch*

Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

Recenzii

Status

IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS

SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD

Supports sending and reading Unstructured Supplementary Service Data messages

Block/Allow list

Operator block/allow list (by country or separate operators)

Multiple PDN

Possibility to use different PDNs for multiple network access and services

Band management

Band lock, Used band status display

SIM PIN code management

SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APN

Auto APN

Bridge

Direct connection (bridge) between mobile ISP and device on LAN

Passthrough

Router assigns its mobile WAN IP address to another device on LAN

Wireless

Wireless mode

802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

Wi-Fi security

WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

SSID/ESSID

SSID stealth mode and access control based on MAC address

Wi-Fi users

Up to 100 simultaneous connections

Wireless Connectivity Features

Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Wireless MAC filter

Allowlist, blocklist

Wireless QR code generator

Once scanned, a user will automatically enter your network without needing to input login information

TravelMate

Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

WAN

1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

LAN

3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

Routing

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP()S, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

VoIP passthrough support

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall status page

View all your Firewall statistics, rules, and rule counters

Port management

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topology

Visual representation of your network, showing which devices are connected to which other devices

DHCP

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM)

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS

Supported >77 service providers, others can be configured manually

DNS over HTTPS

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backup

Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Load balancing

Balance Internet traffic over multiple WAN connections

Hotspot

Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

Hotspot 2.0

Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks

SSHFS

Possibility to mount remote file system via SSH protocol

VRF support

Initial virtual routing and forwarding (VRF) support

Traffic Management

Real-time monitoring, wireless signal charts, traffic usage history

Port Mirroring

Mirroring network traffic on Ethernet ports for monitoring and analysis

Securitate

Firewall

Port forward, traffic rules, custom rules, TTL target customisation

Security

Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Attack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN

Port and tag-based VLAN separation

Mobile quota control

Mobile data limit, customizable period, start time, warning limit, phone number

WEB filter

Block list for blocking out unwanted websites, allow list for specifying allowed sites only

Access control

Flexible access control of SSH, Web interface, CLI and Telnet

Certificate Manager

Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates

VPN

OpenVPN

Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec

XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE

GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPN

Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP

SSTP client instance support

ZeroTier

ZeroTier VPN client support

WireGuard

WireGuard VPN client and server support

Tinc

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

BacNET

Supported modes

Router

Supported connection types

IP, RTU(RS485, USB)

Configuration options

Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

MODBUS

Custom registers

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server

Protocol

HTTP(S), MQTT, Azure MQTT

MQTT Gateway

Modbus MQTT Gateway

Allows sending commands and receiving data from MODBUS Server through MQTT broker

DLMS/COSEM

DLMS Support

DLMS - standard protocol for utility meter data exchange

Monitoring & Management

WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

FOTA

Firmware update from server, automatic notification

SSH

SSH (v1, v2)

Call

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

TR-069

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT

MQTT Broker, MQTT publisher

SNMP

SNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPC

Management API over HTTP/HTTPS

RMS

Teltonika Remote Management System (RMS)

IoT Platforms

ThingWorx

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity - Cloud of Things

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Azure IoT Hub

Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

AWS IoT Core

Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics

CPU

Mediatek, 580 MHz, MIPS 24KEc

RAM

128 MB, DDR2

FLASH storage

16 MB, SPI Flash

Firmware/Configuration

Keep settings

Update FW without losing current configuration

Factory settings reset

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

Operating system

RutOS (OpenWrt based Linux OS)

Supported languages

Busybox shell, Lua, C, C++

Development tools

SDK package with build environment provided

GPL customization

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Package Manager

The Package Manager is a service used to install additional software on the device

Location Tracking

GNSS

GPS, GLONASS, BeiDou, Galileo and QZSS

Coordinates

GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA

NMEA 0183

NTRIP

NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

Server software

Supported server software TAVL, RMS

Geofencing

Configurable multiple geofence zones

Serial

RS232

DB9 connector, RS232 (with RTS, CTS flow control)

RS485

RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate

Serial functions

Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

USB

Data rate

USB 2.0

Applications

Samba share, USB-to-serial

External devices

Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

Storage formats

FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input/Output

Input

1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V; with 4-20 mA capability), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)

Output

1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)

Events

Email, RMS, SMS

I/O juggler

Allows to set certain I/O conditions to initiate event

SD CARD

Physical size

Micro SD (internal)

Capacity

Up to 2 TB

Power

Connector

4-pin industrial DC power socket

Input voltage range

9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

PoE (passive)

Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

Power consumption

< 2 W idle, < 7 W Max

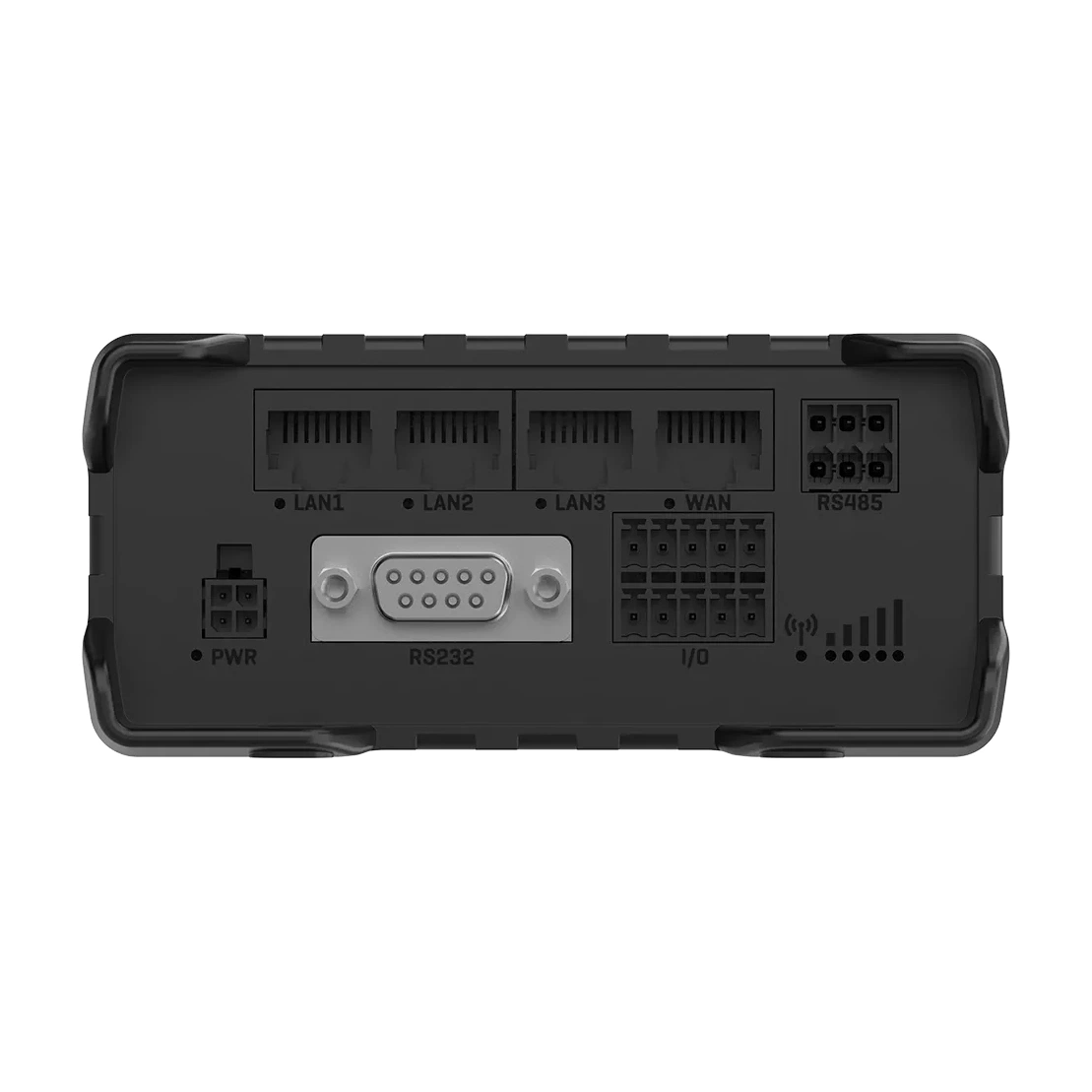

Physical Interfaces

Ethernet

4 x RJ45 ports, 10/100 Mbps

I/O’s

2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)

Status LEDs

1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power

SIM

2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM

Power

1 x 4-pin power connector

Input/output

1 x 10-pin industrial socket for inputs/outputs

USB

1 x USB A port for external devices

Reset

Reboot/User default reset/Factory reset button

Antenna

Antennas

2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

Physical Specification

Casing material

Aluminium housing, plastic panels

Dimensions (W x H x D)

110 x 50 x 100 mm

Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Weight & dimensions

287 g

Operating Environment

Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

Regulatory & Type Approvals

Regulatory

CE, UKCA, ANRT, Kenya, CITC, ICASA, FCC, IC, PTCRB, Anatel, RCM, Giteki, IMDA, ECE R118, E-mark, UL/CSA Safety, CB, RoHS, REACH, NCC, C1D2, ETA-WPC, MTCTE

Operator

AT&T, Verizon, T-Mobile

EMC Emissions & Immunity

Standards

EN 55032:2015 + A11:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-19 V2.1.1, EN 301 489-52 V1.2.1

ESD

EN 61000-4-2:2009

Radiated Immunity

EN 61000-4-3:2020

EFT

EN 61000-4-4:2012

Surge Immunity (AC Mains Power Port)

EN 61000-4-5:2014 + A1:2017

CS

EN 61000-4-6:2014

DIP

EN 61000-4-11:2020

Safety (Hazardous Locations)

Hazardous Environments

Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Group IIC, -40°C ≤ Ta ≤ 75°C, T4, IP30

-Nicio recenzie încă

Părerea ta contează. Recenziile pot fi lăsate doar de clienții care au achiziționat acest produs, după finalizarea comenzii - astfel, fiecare evaluare reflectă o experiență reală de cumpărare.Autentifică-te în contul tău pentru a-ți împărtăși experiența și a-i ajuta pe ceilalți cumpărători să aleagă în cunoștință de cauză.

Nu există recenzii încă. Fii primul care lasă o părere!
