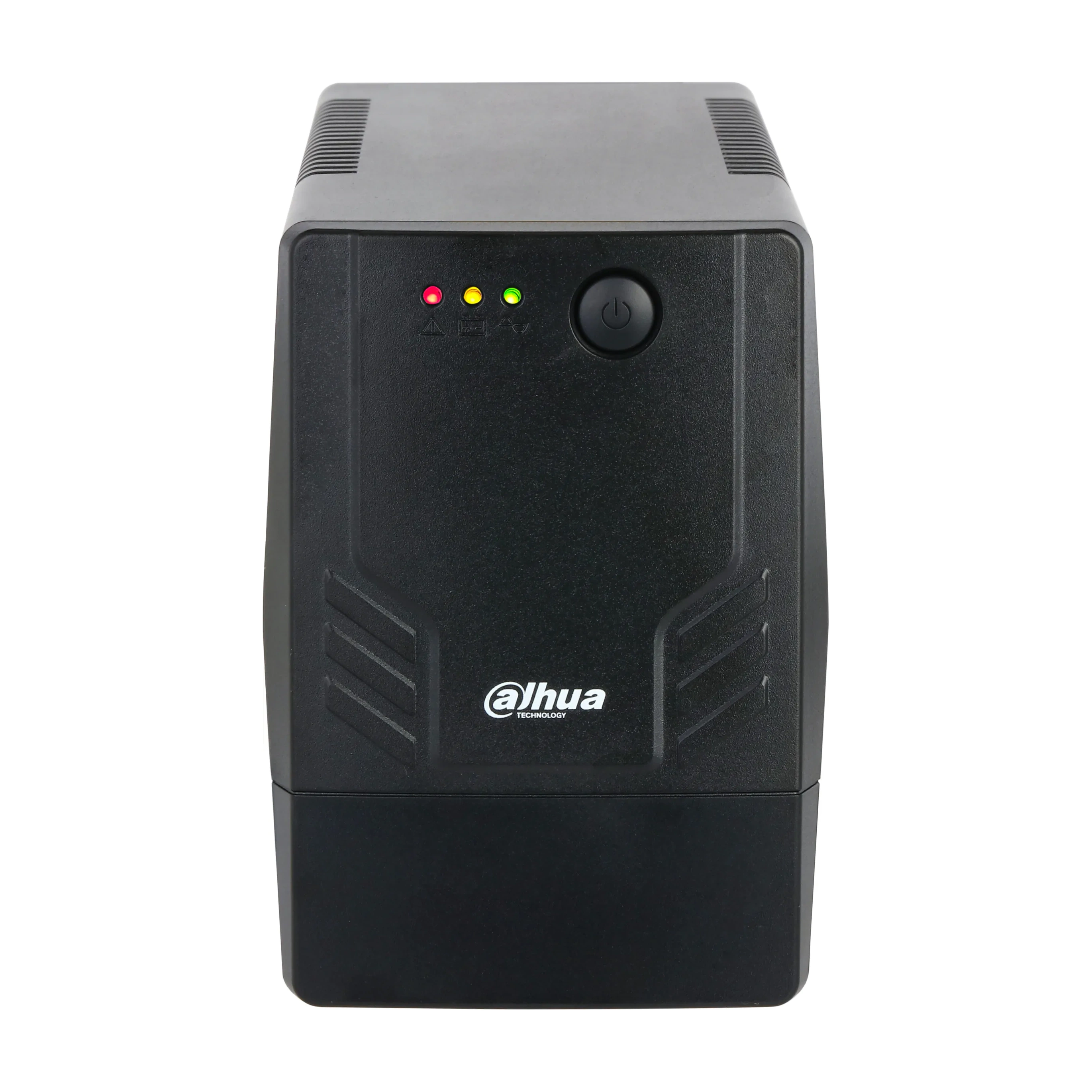

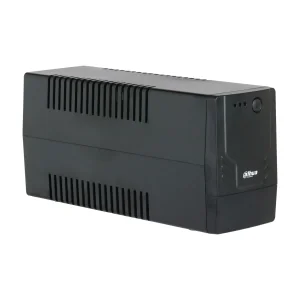

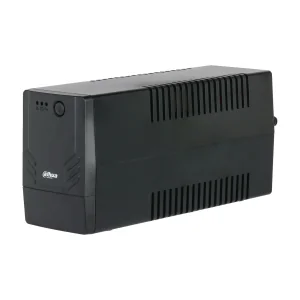

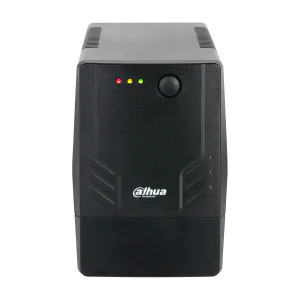

UPS line-interactive DAHUA DH-PFM3350-600, 600 VA / 360 W, Black | dabstore.ro

Se încarcă…

UPS line-interactive DAHUA DH-PFM3350-600, 600 VA / 360 W, Black | dabstore.ro

Capacitate

Capacitate

600 VA, 360 W

Intrare

Tensiune intrare

170–280 VAC

Curent de intrare

2.9 A

Frecvență de intrare nominală

50/60 Hz

Factor de putere

≥0.6

Ieșire

Tensiune de ieșire

230 VAC by default

Curent de ieșire

2.7 A

Frecvență ieșire

50/60Hz

Switch Time

Typical 4 ms–8 ms

Undă de ieșire

AC Mode: Pure sine wave; Battery Mode: Simulated sine wave

Caracteristici

600 VA, 360 W

Baterie

Baterie încorporată

Lead-acid battery

Qty.of Battery

1 × 7Ah

Curent încărcare

1 A

Limited Charge Voltage

13.7 V/pcs

Timp de încărcare

4H–6H to 90%

Indicators

Status Indicator Light

Battery mode: Yellow light flashes once every 10 seconds Mains power mode: Green light solid on Fault mode: Red light solid on

Alarmă

Alarm Indicator

Battery Mode: Beeps once every 10 seconds; Low Battery: Beeps once every second; Overload: Beeps once every 0.5 seconds; Battery Replacement: Beeps once every 2 seconds; Fault: Beeps continuously

Protecție

Tipuri de protecție

Protects against overload, battery overcharge, and over-discharge

Capacitate de suprasarcină

AC Mode Overload: 110% + 20%/ – 10%. The UPS shuts down after 5 minutes and reports an overload fault; AC Mode Overload: 120% + 20%/ – 10%. The UPS shuts down immediately and reports an overload fault; Battery Mode Overload: 120% + 20%/ – 10%. The UPS shuts down immediately and reports an overload fault

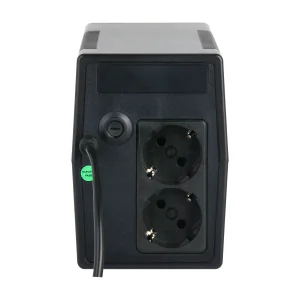

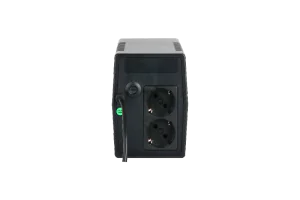

Mufe și prize

Fișă de intrare

European standard

Lungime cablu de intrare

1.2 m

Socket Standard

European standard

Număr de prize de ieșire

2

Other

Ventilator încorporat

Structură

Dimensiuni produs

298.4 mm × 101.5 mm × 142.2 mm / 11.75 inch × 4 inch × 5.6 inch (L × W × H)

Dimensiuni ambalaj

342 mm × 142 mm × 223 mm / 13.46 inch × 5.59 inch × 8.78 inch (L × W × H)

Material carcasă

Plastic

Culoare aspect

Black

Greutate netă

4.4 kg

Greutate brută

4.6 kg

Environment

Temperatură de funcționare

0 °C to +40 °C

Umiditate de operare

0%–90%, non-condensing

Temperatură de depozitare

–15 °C to +55 °C

Umiditate depozitare

0%–90%, non-condensing

Certifications

Certifications

CE LVD: EN IEC 62040-1: 2019+A11: 2021; CE EMC: EN 62040-2: 2006; EN IEC 62040-2: 2018; EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024; EN 61000-3-3: 2013+A1: 2019+A2: 2021
