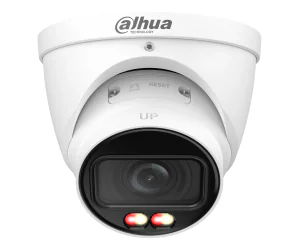

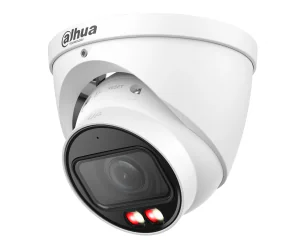

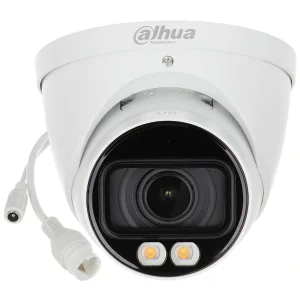

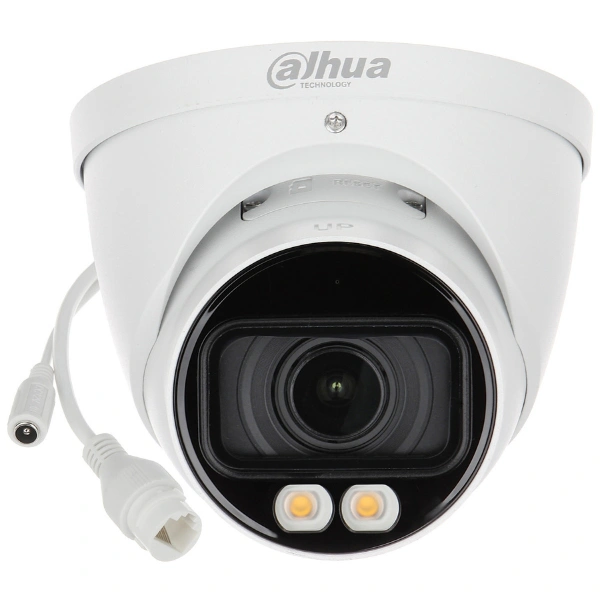

Cameră de supraveghere IP Turret 6 MP Smart Dual Light WizSense DAHUA IPC-HDW2649T-ZS-IL-27135, 2.7-13.5 mm, WL 40 m, IR 40 m, PoE, microfon, White | dabstore.ro

Cameră

Senzor de imagine

1/2.7 inch CMOS

Rezoluție max.

3288 (H) × 1850 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Iluminare minimă

0.007 lux@F1.5 (Color, 30 IRE) 0.0007 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 40 m (IR) Up to 40 m (Warm light)

Illuminator On/Off Control

Auto;Manual

Număr iluminatoare

2 (Multi-core (IR + warm) light)

Ajustare unghi

Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

Zi & noapte

Auto(ICR)/Color/B/W

Obiectiv

Tipul lentilei

Motorized vari-focal

Montură obiectiv

φ14

Distanța focală

2.7 mm–13.5 mm

Max. Aperture

F1.5

Câmp vizual

H: 114°–32°; V: 58°–17°; D: 138°–36°

Iris Control

Fixed

Close Focus Distance

0.8 m

Distanță DORI

Lens Detect Observe Recognize Identify ; W 64.0 m 25.6 m 12.8 m 6.4 m ; T 210.0 m 84.0 m 42.0 m 21.0 m ; *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Funcții inteligente

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD Plus

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Compresie video

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 3288 × 1850@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Capabilitate streaming

2 streams

Rezoluție

6M (3288 × 1850/3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Control rată de biți

VBR;CBR

Rată biți video

H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps

WDR

120 dB

Echilibru alb

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Reducere zgomot

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Regiune de interes (ROI)

Yes (4 areas)

Smart Illumination

Smart Dual Light

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Oglindire

Mască confidenţialitate

4 areas

Caracteristici

BLC

HLC

Audio

Built-in MIC

Yes, built-in Mic

Compresie audio

G.711a; G.711Mu; G.726; PCM

Alarmă

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P

Interoperabilitate

ONVIF (Profile S & Profile G & Profile T); CGI

Stocare

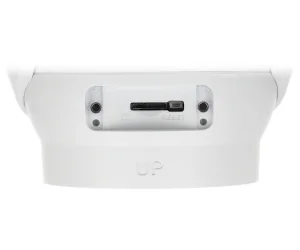

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE; Chrome; Firefox

Software de management

Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Rețea

Utilizator/Gazdă

20 (Total bandwidth: 48 M)

Securitate

Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certificare

Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Putere

Sursă de alimentare

12 VDC/PoE

Putere consumată

Basic: 2.7 W (12 VDC); 3.3 W (PoE); Max.: 8.4 W (12 VDC); 10.1 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity)

Environment

Temperatură de funcționare

–30 °C to +60 °C

Umiditate de operare

≤95% (RH), non-condensing

Temperatură de depozitare

–30 °C to +60 °C

Umiditate depozitare

≤95% (RH), non-condensing

Aprobare

Protecție

IP67

Structură

Material carcasă

Metal

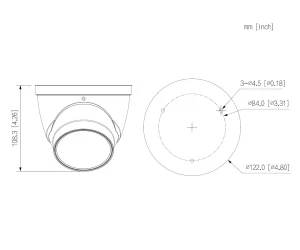

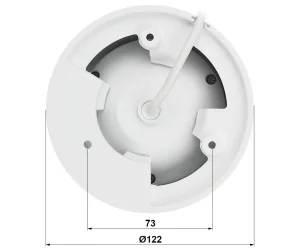

Dimensiuni produs

108.3 mm × Φ122.0 mm / 4.26 inch × Φ4.80 inch

Greutate netă

0.69 kg

Greutate brută

0.86 kg
