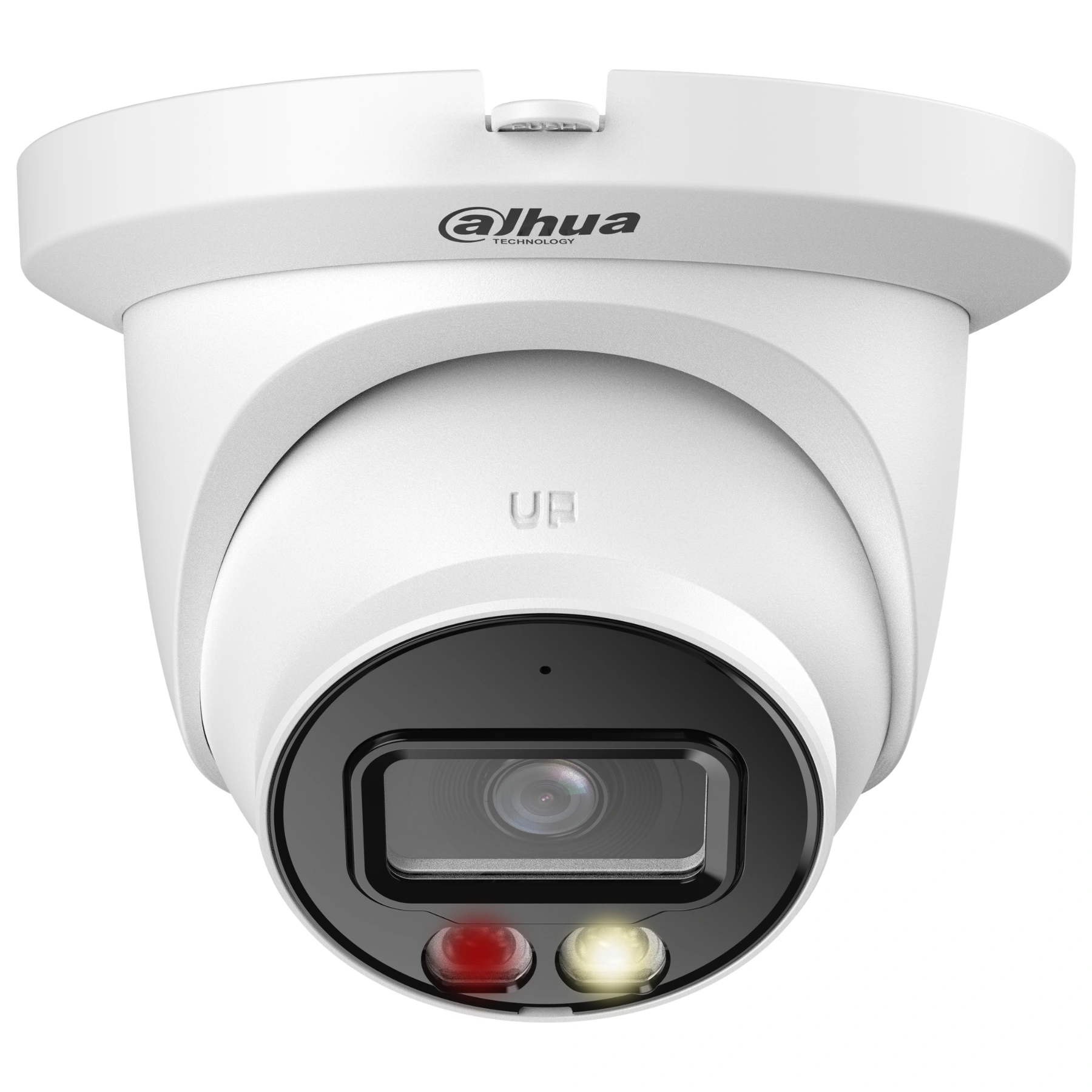

Cameră IP turret DAHUA IPC-HDW2449TM-S-IL-0360B, 4 Mpx, obiectiv 3,6 mm | dabstore.ro

Se încarcă…

Cameră IP turret DAHUA IPC-HDW2449TM-S-IL-0360B, 4 Mpx, obiectiv 3,6 mm | dabstore.ro

Cameră

Senzor de imagine

1/2.9 inch CMOS

Rezoluție maximă

2688 (H) × 1520 (V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.006 lux@F1.6 (Color, 30 IRE) 0.0006 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

up to 30 m (IR); up to 30 m (Warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

1 (IR LED); 1 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°

Caracteristici

ROM

128 MB

RAM

128 MB

Obiectiv

Tip lentilă

Fixed-focal

Montura obiectiv

M12

Distanță focală

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 95°; V: 52°; D: 114° 3.6 mm: H: 78°; V: 41°; D: 94°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.9 m 3.6 mm: 1.6 m

Distanță DORI

Lens Detect Observe Recognize Identify

2.8 mm

63.6 m 25.4 m 12.7 m 6.4 m

3.6 mm

85.4 m 34.2 m 17.1 m 8.5 m

Funcții inteligente

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Rezoluție

4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

HLC

WDR

120 dB

Echilibru alb

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto;Manual

Reducere zgomot

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower)

Oglindire

Mască confidenţialitate

4 areas

Audio

Built-in MIC

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarmă

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception; SMD

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperabilitate

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

6 (Total bandwidth: 36 M)

Stocare

FTP; SFTP; Micro SD card (support max. 256 GB)

Browser

IE Chrome Firefox

Software de management

DSS;DMSS

Mobile Client

iOS;Android

Securitate

Trusted execution; Digest; Security logs; WSSE; Account lockout; syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification

Certificare

Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Putere

Sursă de alimentare

12 VDC/PoE (802.3af)

Putere consumată

Basic: 2.1 W (12 VDC); 2.5 W (PoE) Max. (H.265 + intelligence on + WDR + warm light): 4.4 W (12 VDC); 5.2 W (PoE)

Environment

Temperatură de funcționare

–40 °C to +60 °C

Umiditate de operare

≤95%

Temperatură de depozitare

–40 °C to +60 °C

Protecție

IP67

Structură

Material carcasă

Inner core: Metal; Cover: Metal; Decoration ring: Plastic

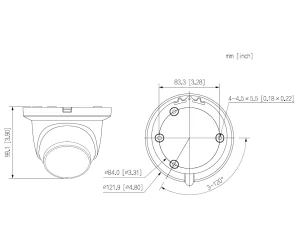

Dimensiuni produs

99.1 mm × Φ121.9 mm / 3.90 inch × Φ4.80 inch

Greutate netă

0.46 kg

Greutate brută

0.65 kg
