MPN: TRB145003000EAN: 4779027312415

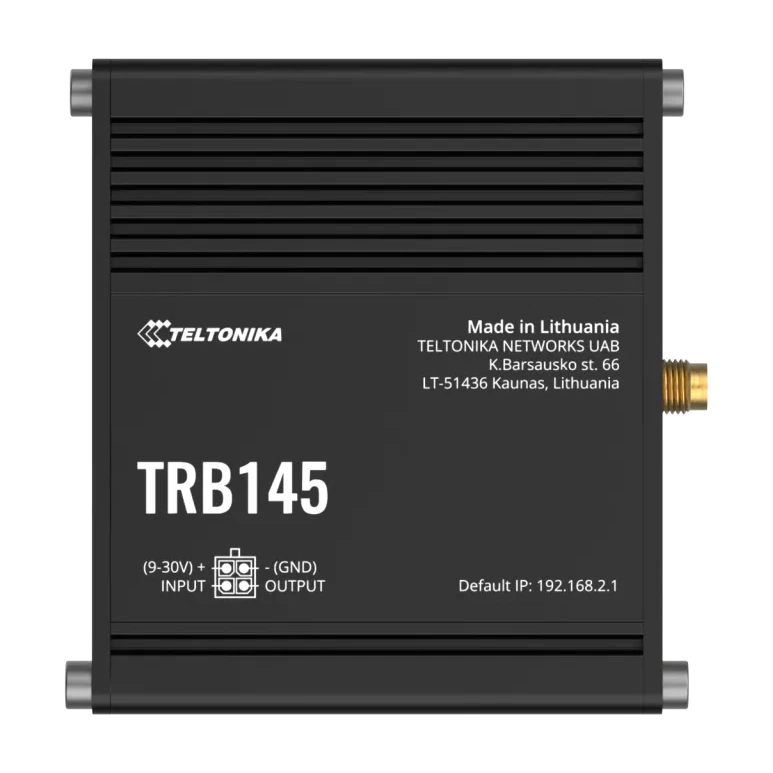

Gateway TELTONIKA TRB145, 4G LTE Cat 1, DIN rail, RS485

Name: Gateway TELTONIKA TRB145, 4G LTE Cat 1, DIN rail, RS485
Brand: Teltonika
SKU: TRB145003000
Price: 758.02 RON
Availability: InStock

Vezi toate produsele TELTONIKA →

pentru estimare livrare

Discount de până la 15% după conectare pentru B2B & B2G

Garanție tehnică:24 luniGaranție de conformitate:24 luni

Status: Stoc limitatDistribuitori: 4Livrat de: dabstore

Distribuitor 01 (RO-28B)Româniacel mai ieftin
Preț unitar, fără TVA:626,46 lei54∗,∗∗ lei
Total (1 buc): 54∗,∗∗ lei · TVA (21%): 11∗,∗∗ lei · Total cu TVA: 65∗,∗∗ lei
Stoc: 5 bucLivrare: 2 zileStoc verificat: 30.08.2026, 11:30
Distribuitor 02 (RO-23)București, Românialivrare mai rapidă
Preț unitar, fără TVA:647,67 lei56∗,∗∗ lei
Total (1 buc): 56∗,∗∗ lei · TVA (21%): 11∗,∗∗ lei · Total cu TVA: 68∗,∗∗ lei
Stoc: 5 bucLivrare: 1 ziStoc verificat: 30.08.2026, 11:42
Distribuitor 03 (RO-25)București, Româniastoc epuizat
Preț unitar, fără TVA:569,76 lei49∗,∗∗ lei
Total (1 buc): 49∗,∗∗ lei · TVA (21%): 10∗,∗∗ lei · Total cu TVA: 59∗,∗∗ lei
Stoc: epuizatLivrare: 1 ziStoc verificat: 30.08.2026, 11:43
Distribuitor 04 (RO-28)Româniastoc epuizat
Preț unitar, fără TVA:626,46 lei54∗,∗∗ lei
Total (1 buc): 54∗,∗∗ lei · TVA (21%): 11∗,∗∗ lei · Total cu TVA: 65∗,∗∗ lei
Stoc: epuizatLivrare: 1 ziStoc verificat: 30.08.2026, 11:30

Cantitate

RO-28B:~~758,02 lei~~65∗,∗∗ lei cu TVA

Conectează-te pentru a putea comanda

Stoc total disponibil: 10 bucăți, la 2 distribuitori

Produse similare

Gateway-ul TRB145 este echipat cu funcții critice LTE Cat 1 și dispune de o interfață RS485 pentru comunicare serială.

Designul compact și instalarea simplă fac acest gateway ideal pentru soluții în care este necesară gestionarea la distanță a unui dispozitiv individual prin interfața serială RS485.

La fel ca celelalte produse TRB, TRB145 este conceput pentru utilizare în scopuri industriale. Astfel, acesta dispune de o gamă largă de funcții software, precum control prin SMS, firewall, Open VPN, Ipsec, sistemul de management la distanță Teltonika Networks (RMS) și suport FOTA.

Mobile

Mobile module

4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps

3GPP Release

Release 12

Status

IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS

SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD

Recenzii

Supports sending and reading Unstructured Supplementary Service Data messages

Block/Allow list

Operator block/allow list (by country or separate operators)

Band management

Band lock, Used band status display

SIM PIN code management

SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APN

Auto APN

Bridge

Direct connection (bridge) between mobile ISP and device on LAN

Passthrough

Gateway assigns its mobile WAN IP address to another device on LAN

Network

Routing

Static routing

Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT

VoIP passthrough support

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall

Port forward, traffic rules, custom rules, TTL target customisation

Firewall status page

View all your Firewall statistics, rules, and rule counters

Port management

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topology

Visual representation of your network, showing which devices are connected to which other devices

DHCP

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM)

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS

Supported >77 service providers, others can be configured manually

DNS over HTTPS

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backup

Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

SSHFS

Possibility to mount remote file system via SSH protocol

Traffic Management

Real-time monitoring, wireless signal charts, traffic usage history

Security

Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Attack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN

Port and tag-based VLAN separation

Mobile quota control

Mobile data limit, customizable period, start time, warning limit, phone number

WEB filter

Block list for blocking out unwanted websites, allow list for specifying allowed sites only

Access control

Flexible access control of SSH, Web interface, CLI and Telnet

Certificate Manager

Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates

VPN

OpenVPN

Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec

XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE

GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPN

Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP

SSTP client instance support

ZeroTier

ZeroTier VPN client support

WireGuard

WireGuard VPN client and server support

Tinc

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

BacNET

Supported modes

Router

Supported connection types

IP, RTU (RS485)

Configuration options

Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

MODBUS

Custom registers

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server

Protocol

HTTP(S), MQTT, Azure MQTT

Data to server

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

Modbus MQTT Gateway

Allows sending commands and receiving data from MODBUS Server through MQTT broker

DLMS/COSEM

DLMS Support

DLMS - standard protocol for utility meter data exchange

Monitoring & Management

WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

FOTA

Firmware update from server, automatic notification

SSH

SSH (v1, v2)

Call

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer

TR-069

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT

MQTT Broker, MQTT publisher

SNMP

SNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPC

Management API over HTTP/HTTPS

RMS

Teltonika Remote Management System (RMS)

IoT Platforms

ThingWorx

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity - Cloud of Things

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Azure IoT Hub

Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

AWS IoT Core

Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics

CPU

ARM Cortex-A7 1.2 GHz

RAM

128 MB, DDR2

FLASH storage

512 MB, SPI Flash

Firmware/Configuration

Keep settings

Update FW without losing current configuration

Factory settings reset

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

Operating system

RutOS (OpenWrt based Linux OS)

Supported languages

Busybox shell, Lua, C, C++, and Python in Package manager

Development tools

SDK package with build environment provided

GPL customization

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Package Manager

The Package Manager is a service used to install additional software on the device

Input/Output

Configurable I/O

2 x Configurable Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA (Configurable Inputs/Outputs are not available in TRB145*2****)

Output control

HTTP POST/GET, Schedule

Events

Email, RMS, SMS

I/O juggler

Allows to set certain I/O conditions to initiate event

Power

Connector

4-pin industrial DC power socket

Input voltage range

9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

Power consumption

< 5 W

Physical Interfaces

I/O’s

2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB145*2****)

Status LEDs

3 x connection type status LEDs, 5 x connection strength LEDs, 1 x Power LED

SIM

1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

Power

1 x 4-pin power connector

Antennas

1 x SMA for LTE

Reset

Reboot/User default reset/Factory reset button

USB

1 x Virtual network interface via micro USB

Serial

RS485

1 x 6-pin terminal block for 2-wire or 4-wire interface

Physical Specification

Casing material

Anodised aluminium housing and panels

Dimensions (W x H x D)

74.5 x 25 x 64.4 mm

Weight

130 g

Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

Regulatory & Type Approvals

Regulatory

CE, UKCA, EAC, UCRF, ANRT, Kenya, ICASA, Anatel, Arcotel, NOM, RCM, Giteki, NTC, E-mark, CB, RoHS, REACH, MTCTE

Operator

Deutsche Telekom AG

EMC Emissions & Immunity

Standards

Draft EN 301 489-1 V2.2.0, Draft EN 301 489-52 V1.1.0

ESD

EN 61000-4-2:2009

Radiated Immunity

EN IEC 61000-4-3:2006 + A1:2008 + A2:2010

EFT

EN 61000-4-4:2012

Surge Immunity (AC Mains Power Port)

EN 61000-4-5:2014

CS

EN 61000-4-6:2014

DIP

EN 61000-4-11:2004
