DVR AHD / HD-CVI / HD-TVI / CVBS / IP DAHUA XVR5216AN-I3/T, 16 canale | dabstore.ro

Sistem integrat

Procesor principal

Industrial-grade processor

Sistem de operare

Embedded Linux

System

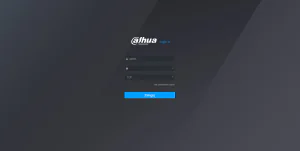

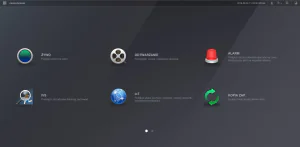

Operating Interface

Web; Local GUI

AcuPick

AcuPick Performance of AI by Recorder (1080P) (Number of Channels)

2 channels

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

4 channels, 10 IVS rules for each channel

Detectare față

Face Attributes

6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 12 face images/s each channel)

Recunoaștere facială

Face Database Capacity

Up to 10 face databases with 10,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD

SMD Plus by Recorder

16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD by Camera

24 channels

AI Video Quality Analytics

AI Video Quality Analytics by Recorder

16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white.

Scene Changing

Scene Changing by Recorder

1 channel

Irregular Black Block Masking

Irregular Black Block Masking by Recorder

1 channel

Audio și video

Analog Camera Input

16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP(2560 × 1944)@20 fps; 5 MP(2960 × 1665)@20/25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used.

Encoding Capacity

Encode Enhancement disabled： Main stream: Channels 1-4 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps); Channels 1-4 4M-N/1080p@(1 fps–30 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); Encode Enhancement enabled： Main stream: Channels 1-8 5M-N@(1 fps–20 fps), others 5M-N@(1 fps-12 fps); (4 channels can be transformed to 5MP@6 fps) Channels 1-8 4M-N/1080p@(1 fps–25 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); *When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used.

Dual-stream

Audio Sampling

8 kHz, 16 bit

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25

Third-party Camera Access

Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Video

Video Bit Rate

32 kbps–6144 kbps

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Generalități

Audio Bit Rate

64 kbps

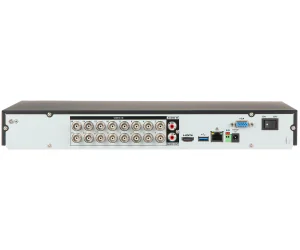

Port

Video Output

1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face, IVS&SMD or AcuPick is selected in AI Mode.

1-channel RCA 16-channel BNC (Coaxial Audio)

1-channel RCA

RS-485

1

USB

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

Audio

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iOS; Android

Interoperabilitate

ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

Înregistrare și redare

Record Mode

General; alarm; motion detection; intelligent

Înregistrare și redare

1/4/9/16 It changes to 1/4/9 split when Face or IVS&SMD or AcuPick is selected in AI Mode.

Backup Method

USB device and network

Playback Mode

Instant playback; general playback; event playback; tag playback; smart playback

Stocare

Disk Group

Alarmă

General Alarm

Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Anomaly Alarm

Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm

Face detection; face recognition; perimeter protection; SMD Plus

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

Ports

Two-way Talk

Coaxial two-way talk: 16-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel

Disk Interface

2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.

1

VGA

1

Putere

Sursă de alimentare

12 VDC, 4 A

Structură

Greutate netă

1.80 kg

Greutate brută

2.95kg

Dimensiuni produs

375.0 mm × 289.6 mm × 53.0 mm / 14.76 inch × 11.40 inch × 2.09 inch (W × D × H)

General

Dimensiuni ambalaj

427.0 mm × 137.0 mm × 356.0 mm / 16.81 inch × 5.39 inch × 14.02 inch (W × D × H)

Installation

Desktop

Environment

Temperatură de funcționare

–10 °C to +55 °C

Temperatură de depozitare

–20 °C to +60 °C

Umiditate de operare

10%–90% (RH), non-condensing

Certificare

Certifications

CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
