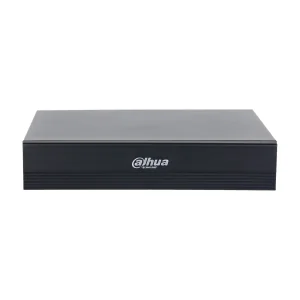

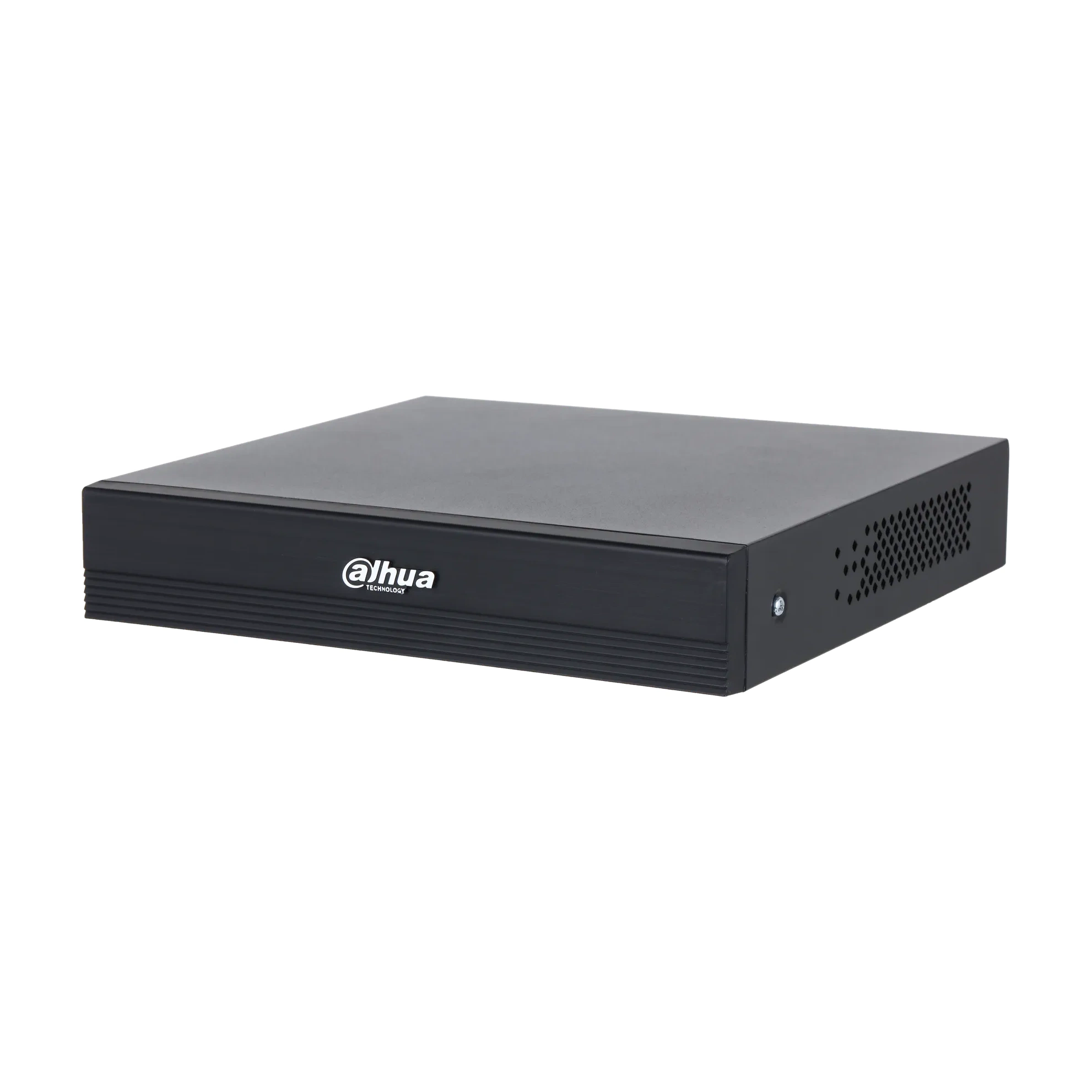

DVR AHD / HD-CVI / HD-TVI / CVBS / IP DAHUA XVR1B08H-I/T, 8 canale | dabstore.ro

Se încarcă…

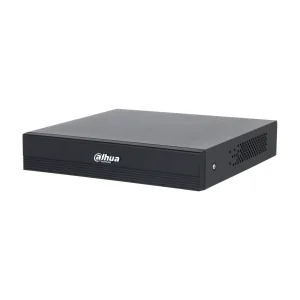

DVR AHD / HD-CVI / HD-TVI / CVBS / IP DAHUA XVR1B08H-I/T, 8 canale | dabstore.ro

System

Procesor principal

Industrial-grade processor

Sistem de operare

Embedded Linux

Operating Interface

Web; Local GUI

SMD Plus

SMD Plus by Recorder

8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD

SMD by Camera

12 channels

Irregular Black Block Masking

Irregular Black Block Masking by Recorder

1 channel

Audio și video

Analog Camera Input

8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 12 channels of IPC access 4 IP channels by default + 8 channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps

Encoding Capacity

Main stream: 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1fps-12 fps) 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: D1/CIF@(1 fps–15 fps)

Dual-stream

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16

Third-party Camera Access

Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Video

Video Bit Rate

32 kbps–6144 kbps

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iOS; Android

Interoperabilitate

ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Network Port

1 (10/100 Mbps Ethernet port, RJ-45)

Înregistrare și redare

Record Mode

General; alarm; motion detection

Recording Playback

1/4/9

Backup Method

USB device and network

Playback Mode

Instant playback; general playback; event playback; tag playback; smart playback

Alarmă

General Alarm

Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm

SMD Plus

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

Ports

Intrare audio

1-channel RCA 8-channel BNC (Coaxial Audio)

Ieșire audio

1-channel RCA

Two-way Talk

Coaxial two-way talk: 8-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel

Disk Interface

1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.

USB

2 (2 rear USB 2.0 ports)

HDMI

1

VGA

1

Putere

Alimentare

12 VDC, 1.5 A

Structură

Greutate netă

0.59 kg

Greutate brută

1.14 kg

Dimensiuni produs

197.0 mm × 204.3 mm × 41.5 mm / 7.76 inch × 8.04 inch × 1.63 inch (W × D × H)

Generalități

Dimensiuni ambalaj

332.0 mm × 64.0 mm × 240.0 mm / 13.07 inch × 2.52 inch × 9.45 inch (W × D × H)

Instalare

Desktop

Environment

Temperatură de funcționare

–10 °C to +45 °C

Temperatură de depozitare

–20 °C to +60 °C

Umiditate de funcționare

10%–90% (RH), non-condensing

Certificare

Certificări

CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
