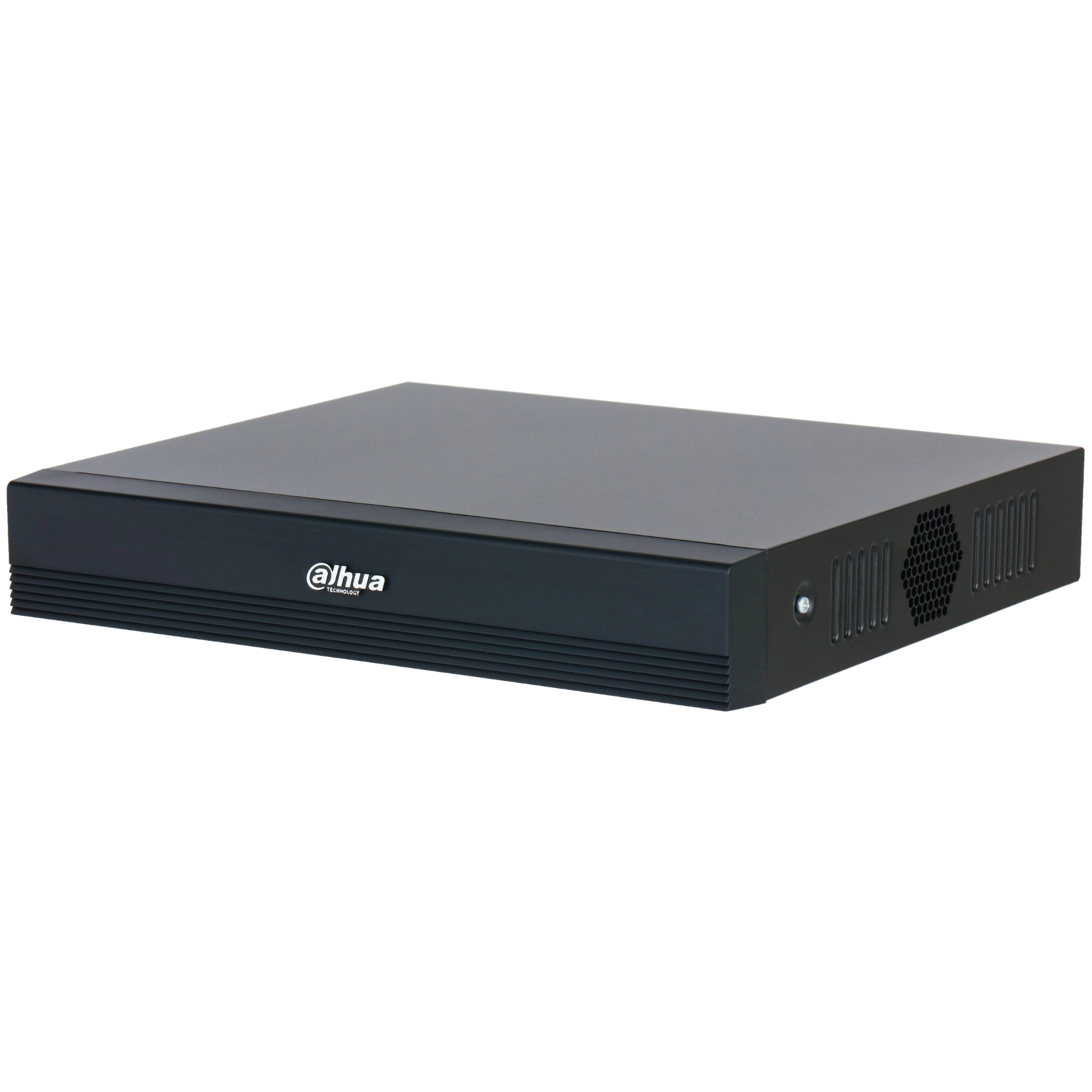

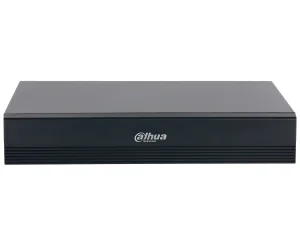

DVR DAHUA XVR1B16-I/T, 16 canale, AHD, HD-CVI, HD-TVI, CVBS, IP | dabstore.ro

Sistem integrat

Procesor principal

Industrial-grade processor

Sistem de operare

Embedded Linux

System

Operating Interface

Web; Local GUI

SMD

SMD Plus by Recorder

16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD by Camera

18 channels

Irregular Black Block Masking

Irregular Black Block Masking by Recorder

1 channel

Audio și video

Analog Camera Input

16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 1080p@25/30 fps; 720p@25/30 fps. 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 18 channels of IPC access 2 IP channel by default + 16 channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps

Encoding Capacity

Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–7 fps)

Dual-stream

Audio Sampling

8 kHz, 16 bit

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25

Third-party Camera Access

Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Video

Video Bit Rate

32 kbps–4096 kbps

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Generalități

Audio Bit Rate

64 kbps

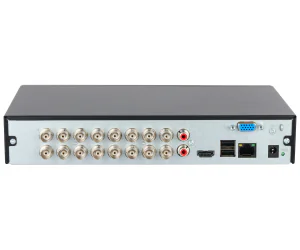

Port

Video Output

1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

1-channel RCA 16-channel BNC (Coaxial Audio)

1-channel RCA

USB

2 (2 rear USB 2.0 ports)

Audio

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iOS; Android

Interoperabilitate

ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Network Port

1 (10/100 Mbps Ethernet port, RJ-45)

Înregistrare și redare

Record Mode

General; alarm; motion detection

Înregistrare și redare

1/4/9/16

Backup Method

USB device and network

Playback Mode

Instant playback; general playback; event playback; tag playback; smart playback

Alarmă

General Alarm

Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm

SMD Plus

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

Ports

Two-way Talk

Coaxial two-way talk: 16-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel

Disk Interface

1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.

1

VGA

1

Putere

Sursă de alimentare

12 VDC, 2 A

Structură

Greutate netă

0.96 kg

Greutate brută

1.54 kg

Dimensiuni produs

260.0 mm × 231.6 mm × 47.6 mm / 10.24 inch × 9.12 inch × 1.87 inch (W × D × H)

General

Dimensiuni ambalaj

344.0 mm × 89.0 mm × 287.0 mm / 13.54 inch × 3.50 inch × 11.30 inch (W × D × H)

Installation

Desktop

Environment

Temperatură de funcționare

–10 °C to +45 °C

Temperatură de depozitare

–20 °C to +60 °C

Umiditate de operare

10%–90% (RH), non-condensing

Certificare

Certifications

CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
