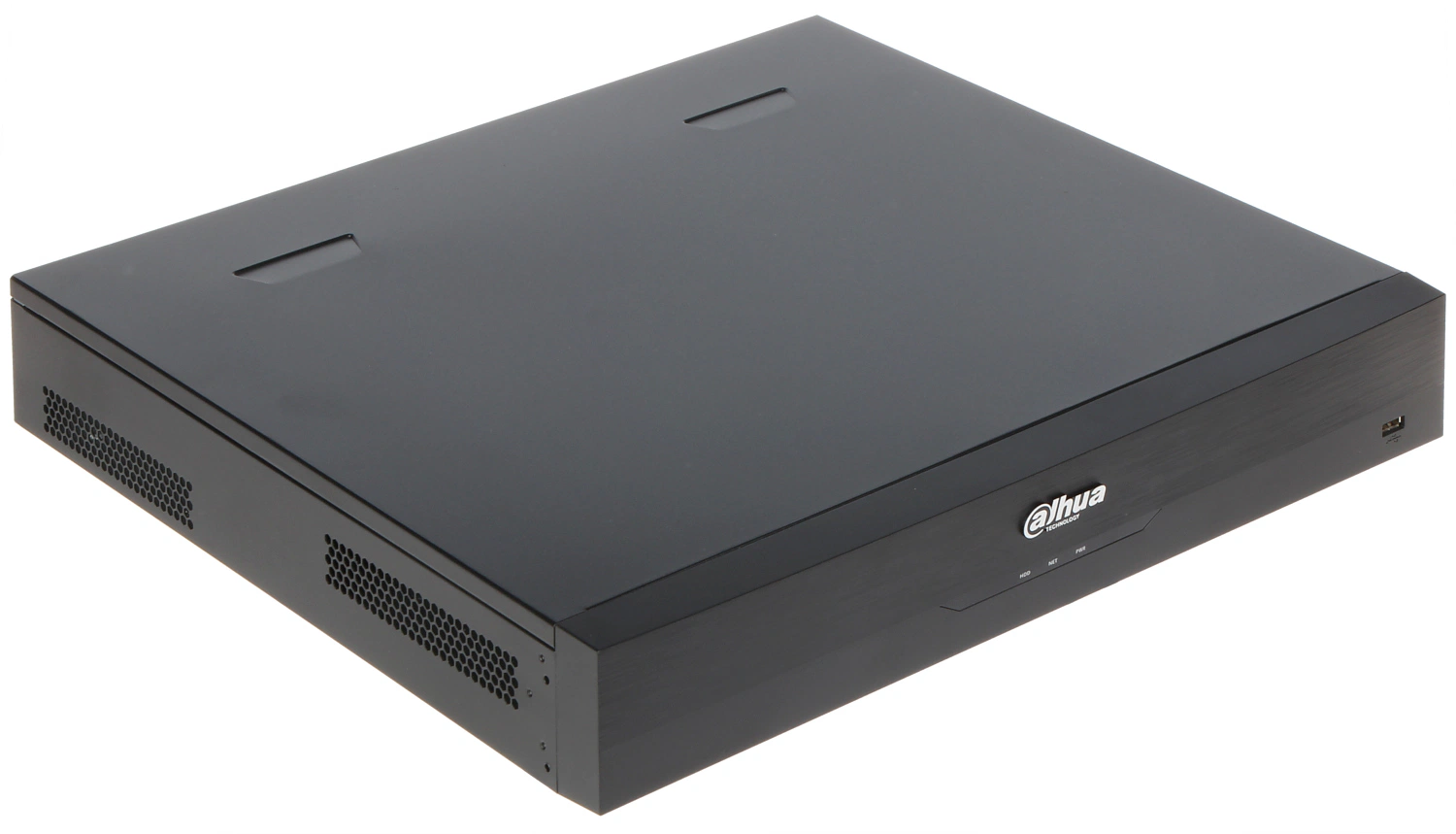

DVR AHD / HD-CVI / HD-TVI / CVBS / IP DAHUA XVR5432L-I3, 32 canale | dabstore.ro

Se încarcă…

DVR AHD / HD-CVI / HD-TVI / CVBS / IP DAHUA XVR5432L-I3, 32 canale | dabstore.ro

System

Procesor principal

Industrial-grade processor

Sistem de operare

Embedded Linux

Operating Interface

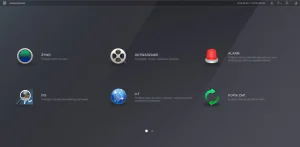

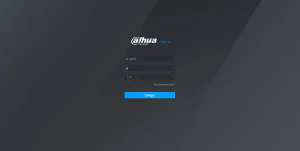

Web; Local GUI

Quick Pick

QuickPick 2.0 AI by Recorder (Number of Channels)

2 channels

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 8 channels, 10 IVS rules for each channel

Detectare față

Face Attributes

6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels(up to 12 face images/s each channel)

Recunoaștere facială

Face Database Capacity

Up to 10 face databases with 10,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

32 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

48 channels

AI Video Quality Analytics

AI Video Quality Analytics by Recorder

32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

Scene Changing

Scene Changing by Recorder

1 channel

Irregular Black Block Masking

Irregular Black Block Masking by Recorder

1 channel

Audio și video

Analog Camera Input

32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 48 channels of IPC access 16 IP channels by default +32 channels (analog channels are converted to IP channels) incoming bandwidth: 192 Mbps, recording bandwidth: 192 Mbps and outgoing bandwidth: 192 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used.

Encoding Capacity

Encode Enhancement disabled： Main stream: Channels 1-4 and 17-20 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps); Channels 1-4 and 17-20 4M-N/1080p@(1 fps–30 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); Encode Enhancement enabled： Main stream: Channels 1-8 and 17-24 5M-N@(1 fps–20 fps), others 5M-N@(1 fps-12 fps); (4 channels can be transformed to 5MP@6 fps) Channels 1-8 and 17-24 4M-N/1080p@(1 fps–25 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); *When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and QuickPick 2.0 cannot be used.

Dual-stream

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

2 HDMI, 1 VGA, 1 CVBS HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 *Heterogeneous video sources output for HDMI 2 is configurable.

Multi-screen Display

1/4/8/9/16/25/36

Third-party Camera Access

Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Video

Video Bit Rate

32 kbps–6144 kbps

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iOS; Android

Interoperabilitate

ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

Înregistrare și redare

Record Mode

General; alarm; motion detection; intelligent; POS

Recording Playback

1/4/9/16

Backup Method

USB device and network

Playback Mode

Instant playback; general playback; event playback; tag playback; smart playback

Stocare

Disk Group

Alarmă

General Alarm

Motion detection; local alarm; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm

Face detection; face recognition; perimeter protection; SMD Plus

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzer; log; preset; email

Ports

CVBS Output

1 channel

Intrare audio

4-channel BNC(external) 32-channel BNC (Coaxial Audio)

Ieșire audio

1-channel BNC

Two-way Talk

1-channel BNC

Alarm Input

16 channels

Alarm Output

6 channels

Disk Interface

4 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.

eSATA

1

RS-232

1

RS-485

1

USB

3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)

HDMI

2

VGA

1

Putere

Alimentare

100–240 VAC, 50±2% Hz

Structură

Greutate netă

4.8 kg

Greutate brută

7.1 kg

Dimensiuni produs

440.0 mm × 420.2 mm × 76.0 mm / 17.32 inch × 16.54 inch × 2.99 inch (W × D × H)

Generalități

Dimensiuni ambalaj

529.0 mm × 499.0 mm × 211.0 mm 52,9 x 49,9 x 21,1 cm / 20.83 x 19.65 x 8.31 inch (W × D × H)

Instalare

Desktop

Environment

Temperatură de funcționare

–10 °C to +55 °C

Temperatură de depozitare

–20 °C to +60 °C

Umiditate de funcționare

10%–90% (RH), non-condensing

Certificare

Certificări

CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
