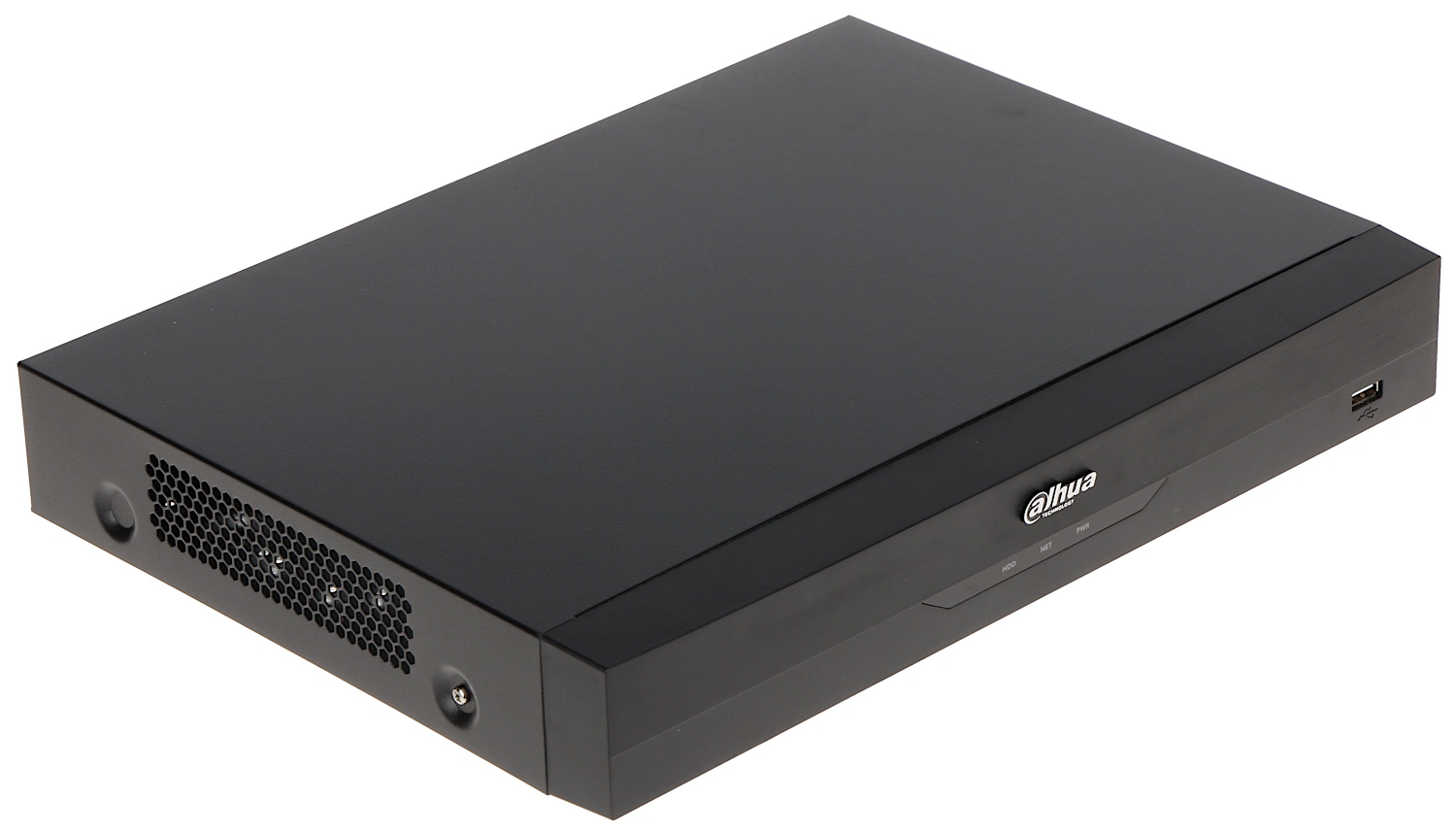

DVR DAHUA XVR5104HE-I3, 4 canale, AHD, HD-CVI, HD-TVI, CVBS, IP | dabstore.ro

Sistem integrat

Procesor principal

Industrial-grade processor

Sistem de operare

Embedded Linux

System

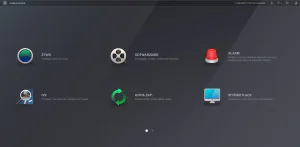

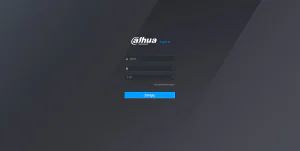

Operating Interface

Web; Local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model : 1 channel, 10 IVS for each channel General Model : 2 channels, 10 IVS for each channel

Detectare față

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

1 channel, (up to 8 face images/s)

Recunoaștere facială

Face Database Capacity

Up to 10 face databases and 10,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels)

1 channel

SMD

SMD Plus by Recorder

4-channel: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

Audio și video

Analog Camera Input

4 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

Camera Input

1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps. 2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 4. CVBS: PAL/NTSC

IP Camera Input

Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding Capacity

Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15 fps); 1080N/720P/960H/ D1/CIF (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15 fps)

Dual-stream

Audio Sampling

8 kHz, 16 bit

Multi-screen Display

When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

Video

Video Bit Rate

32 kbps–6144 kbps

Video Compression

AI Coding; H.265+; H.265; H.264+; H.264

Generalități

Audio Bit Rate

64 kbps

Port

Video Output

1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

4-channel RCA 4-channel BNC (Coaxial Audio)

1-channel RCA

Alarm Input

8

Ieșire alarmă

3

RS-485

1 port, for PTZ control

USB

2 USB ports (USB 2.0)

Audio

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Mobile Phone Access

iOS; Android

Interoperabilitate

ONVIF 21.06; CGI Conformant

Browser

Chrome IE9 or later Firefox

Network Mode

Single-address mode

Network Port

1 (10/100 Mbps Ethernet port, RJ-45)

Înregistrare și redare

Record Mode

General, motion detection; intelligent; alarm; POS

Înregistrare și redare

1/4

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Alarmă

General Alarm

Motion detection, Video Loss, tampering, and local alarm

Anomaly Alarm

No disk, disk error, low space, offline, ip conflict, MAC conflict

Intelligent Alarm

Face detection, face recognition, perimeter protection

Alarm Linkage

Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

Ports

Two-way Talk

Yes (share the same audio input with the first channel)

Interfață HDD

1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.

1

VGA

1

Putere

Sursă de alimentare

12 VDC, 1.5 A

Structură

Greutate netă

1.1 kg

Greutate brută

1.8 kg

Dimensiuni produs

325.0 mm × 257.2 mm × 55.0 mm(W × D × H)

General

Dimensiuni ambalaj

372.0 mm × 117.0 mm × 308.0 mm / 14.65 inch × 4.61 inch× 12.13 inch (W × D × H)

Installation

Desktop

Environment

Temperatură de funcționare

–10 °C to +55 °C

Umiditate de operare

0%–90% (RH)

Certificare

Certifications

FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
