DVR 4 canale DAHUA DH-XVR1B04H-I, 5 MP, 1 HDD, WizSense | dabstore.ro

System

Procesor principal

Industrial-grade processor

Sistem de operare

Embedded Linux

Interfață de operare

Web; Local GUI

SMD

SMD Plus by Recorder

4-channel: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

Audio și video

Intrare cameră analogică

4 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

Intrare cameră

1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps. 2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 4. CVBS: PAL/NTSC

IP Camera Input

Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled.

Capacitate de codare

Main Stream: All channel 5M-N@ (1 fps–10 fps); 4M-N/1080p@ (1 fps–15 fps); 1080N/ 720p/960H/D1/CIF@ (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15 fps)

Video Bit Rate

32 kbps–6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Ieșire video

1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Afișare multi-ecran

When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

Înregistrare

Flux dual

Compresie video

AI Coding; H.265+; H.265; H.264+; H.264

Compresie audio

G.711a; G.711u; PCM

Rețea

Protocol de rețea

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Network

Mobile Phone Access

iOS; Android

Interoperabilitate

ONVIF 21.06; CGI Conformant

Browser

Chrome IE9 or later Firefox

Network Mode

Single-address mode

Înregistrare și redare

Record Mode

General, motion detection, alarm, POS

Înregistrare și redare

1/4

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback

Alarmă

General Alarm

Motion detection, video loss, tampering

Anomaly Alarm

No disk, disk error, low space, offline, ip conflict, MAC conflict

Alarm Linkage

Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

Video și audio

Intrare audio

1-channel RCA 4-channel BNC (Coaxial Audio)

Ieșire audio

1-channel RCA

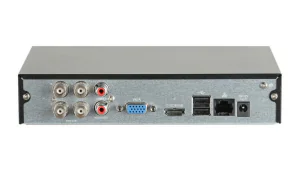

Ports

Two-way Talk

Yes (share the same audio input with the first channel)

Interfață HDD

1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.

USB

2 USB ports (USB 2.0)

HDMI

1

VGA

1

Network Port

1 (10/100 Mbps Ethernet port, RJ-45)

General

Alimentare

12 VDC, 1.5 A

Putere consumată

Greutate netă

0.55 kg

Greutate brută

1.02 kg

Dimensiuni produs

197.0mm × 203.4 mm × 41.5 mm (W × D × H)

Dimensiuni ambalaj

332.0 mm × 240.0 mm × 64.0 mm / 13.07 inch × 9.45 inch × 2.52 inch (W × D × H)

Temperatură de funcționare

–10 °C to +55 °C

Umiditate de operare

0%–90% (RH)

Installation

Desktop

Certifications

FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
